GARDENING MACHINE WITH ATTACHEMENTS

Turbo 1-2-4 professional machines represent the top-range of Gianni Ferrari collecting units and guarantee:

SUPERIOR PERFORMANCE UNDER ALL APPLICATIONS. SAFETY FIRST!!!

These machines have been designed and built with regard to safety and reliability in every working condition. The machine and relevant equipment have been subjected to various tests and checks provided by the EEC regulations for safety, noise, vibrations and electromagnetic emissions. Several devices have been installed on the machine to ensure maximum safety.

TURBO 1 – TURBO 1W

COMPACT AND POWERFUL

The latest addition to the range is extremely efficient on flat ground or on areas with slight slopes. A powerful 3 cylinder diesel engine and a large blower allow very high cutting speed and a very good cutting quality even with high, wet grass.

A 1100 litre grasscatcher, together with a high dump elevator (dumping at 2.1 mt) will make your job extremely productive. Very compact, it can easily work with obstacles and narrow paths.

The Turbo 1W is provided with patented HTC™ (Hydrostatic Traction Control) 4 wheel drive for a perfect traction on hard slopes.

TURBO 2 – 4

FOR A MAXIMUM OF EFFICIENCY

Turbo 2 and 4 has the same features as Turbo 1 but with a more powerful 4 cylinder diesel engine and a 1300 litre grasscatcher. Performances in open areas consequently improve: a football field with thick and wet grass can be cut and collected within an hour, with a cutting quality very close to that obtained by a cylinder mower.
The Turbo 4 model features 4 wheel drive and HTC-VD ™ system for perfect drive on even the toughest slopes.

TURBO 2 – 4

OFFERING MAXIMUM COMFORT

Unbeatable on areas with strong slopes. The low center of gravity allows safe cutting even on the side of slopes, where competitors’ mowers could not work. A 50 hpengine, a 2-speed transmission that maximizes traction and speed during transfer, a 1400 liter grasscatcher make the machine a top performer.

TURBO V50 - CRUISER

FOR MAXIMUM TRACTION AND POWER

CUTTING SYSTEM

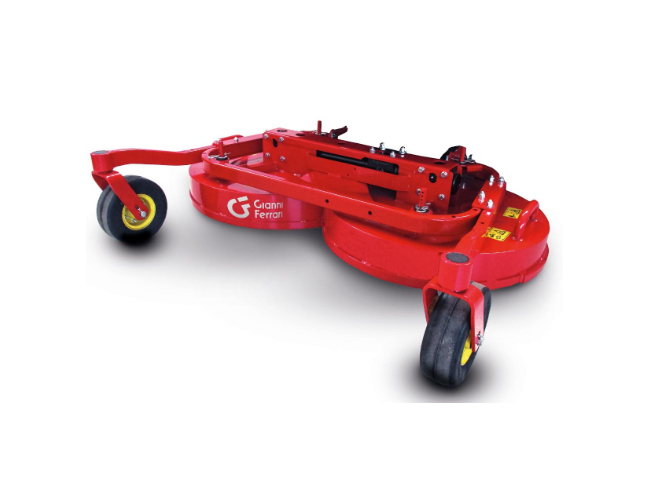

The collection decks are distinguished by the direction of rotation of the blades, contrary to that of traditional mowers. Reverse rotation, combined with the unique, specifically designed shape of the deck shell, offers a cutting quality close to that obtainable with a cylinder blade mower and also a very high collection capacity without clogging, even with tall and wet grass. A front opening in the housing of the plates makes the edge higher than the cutting level of the blades. This difference in height prevents grass from being flattened, allowing the blades to cut precisely even with long grass. The deck maintains appropriate safety using mobile flaps that open in the presence of tall grass and close with short grass or if struck by objects coming from inside. The mowers are equipped with disks with dual pairs of shockproof swing back blades.

COLLECTION DECK	130 RCA	150 RCA	180 RCA
Features	2 Discs reverse rotation with articulated blades	2 Discs reverse rotation with articulated blades	2 Discs reverse rotation with articulated blades
Cutting width	130 cm	150 cm	180 cm
Dimensions (Lenght/width/height)	107/134/32 cm	115/155/32 cm	118/185/35 cm
Adjustable cutting height with lever	From 2 to 8 cm	From 2 to 8 cm	From 2 to 8 cm
Weight	150 kg	180 kg	200 kg

STAGE V

MODEL	TURBO 1	TURBO 1W	TURBO 2	TURBO 4
Grasscatcher capacity	1100 L	1100 L	1300 L	1300 L
Maximum emptying height	210 cm	210 cm	220 cm	220 cm
Overhang at maximum height	30 cm	30 cm	35 cm	35 cm

DRIVER’S POSITION

Since this is a highly professional machine, intended for extended use during day time, particular attention has been paid to the operator’s seat and control ergonomics to give the driver maximum comfort and safety.

The engine throttle controls and the blade and hydraulic devices (deck lift, collector emptying and lifting) engagement controls are all located near the operator’s right hand and are all easily accessible. Warning lights and level gauges are located on the steering column. The tilt adjustable steering arm always allows the correct drive position to be achieved by the operator and it is extremely comfortable. Access to the seat is unhindered as there are no obstacles between the steering wheel, seat and foot-platform. The foot-platform is mounted on isomounts and is fully adjustable to the vertical position allowing the mower deck to be safely tilted via hydraulic power to vertical. The seat is adjustable in various positions for better comfort 3 heights, full slide, adjustable back and armrests plus weight adjustment from 50 to 130 kg. Standard mounted pneumatic seat on the Turbo 4 Fifty.
